Hydraulic domestic elevator

A hydraulic-driven residential elevator for villa uses high-end cylinders, pumps, and control valves. Its high-precision proportional valve would have smooth stable stepless speed regulation.

Let's get started Hydraulic domestic elevator

Hydraulic drive is one of the earliest elevator drive methods. The transmission medium of early hydraulic elevator was water, it exploited the incompressibility of water by increasing the pressure to raise the water pressure and entered the cylinder to push the piston in the cylinder to lift the cab, making the cab ascend,the car descended under its own weight by opening the venting valve to drain the fluid. However, due to the presence of air bubbles in the hydraulic pressure and being difficult the rust problem of the cylinder to solve, ever since then, oil was used as the medium to drive the piston in a linear motion instead of water.

Hydraulic elevator is particularly suitable for short travels and heavy loads due to the advantages of a large lifting force, high mechanical efficiency and low energy consumption. In addition, as hydraulic elevator does not require a machine room at the top, it can effectively reduce the vertical size of the shaft and utilize the space in the building,therefore, the application prospect of hydraulic elevator is quite broad,which is widely used in parking lots, factories and low-rise buildings,hydraulic elevator is more economical and appropriate than traction elevator for heavy loads, slow speeds and short travel distances.

This is not only our characteristic, but also our most unique differentiator

Hydraulic elevator is more space-efficient in terms of building.

The machine room settings of hydraulic elevator is flexible, and the hydraulic transmission system relies on oil pipesto transmit power. Thus, a top machine room is not needed for a hydraulic elevator. Therefore, it can effectively reduce the vertical size of the shaft and utilize the building space.

Hydraulic elevator has lower requirements for civil engineering structures.

A hydraulic elevator only needs one load-bearing wall and does not need a machine room. Since the vertical load such as the car’s body weight and load is all exerted on the foundation of the shaft by the hydraulic cylinder, which is low building performance at the top of the shaft. It is because of this significant advantage that hydraulic elevator occupied almost the entire home elevator market in the previous years.

The hydraulic elevator will not over-speed and lose control, enabling self-rescue in the event of entrapment.

The hydraulic elevator will not undergo overshooting to the top or bottoming out. As long as the mechanical mechanism is reasonably designed and installed reliably, the safety factor of the hydraulic elevator is relatively high.Moreover, a backup battery is available. In case of elevator power failure or malfunction, pressing the emergency button at the bottom which will connect the circuit of he oil discharge valve, the hydraulic oil will slowly return to the tank, and the elevator will descend slowly under its own weight to achieve self-rescue.

A variety of looks are available for you to choose from

Minimalist Elevator

Designed for compact homes and refined interiors, this elevator offers quiet, smooth travel with a sleek, unobtrusive look. It blends effortlessly into the environment, delivering both practicality and modern elegance without taking up visual space.

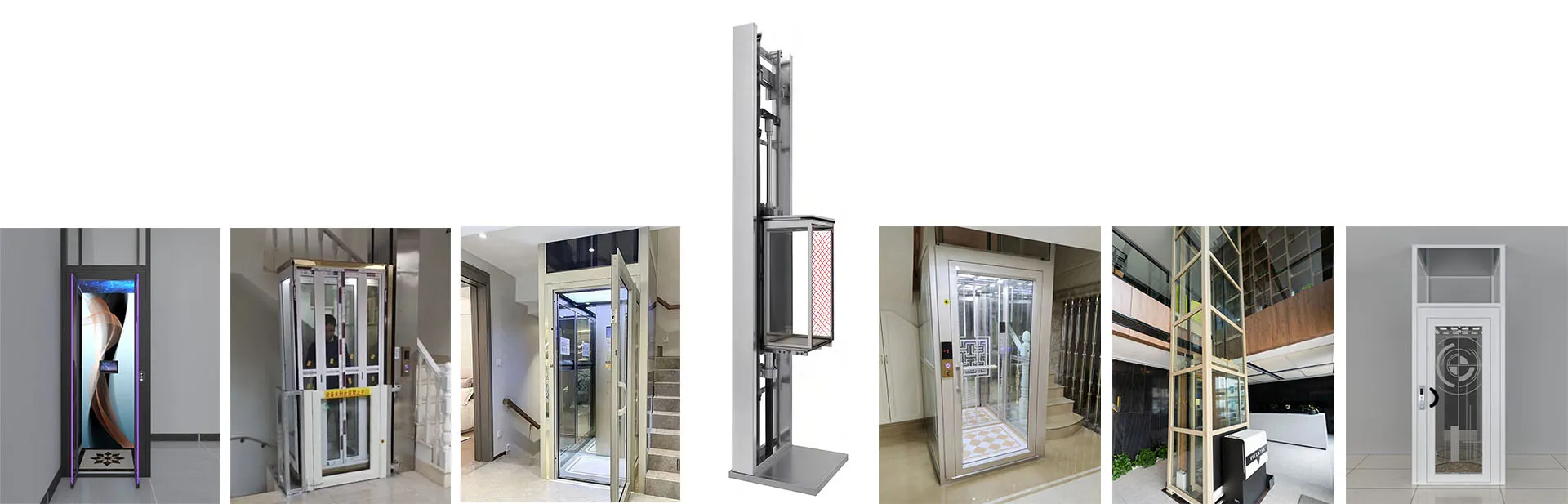

Diverse Cabin Styles

From bold colors to elegant finishes, our range of elevator cabins showcases endless customization options. Whether minimalist or expressive, each design is crafted to complement different architectural styles and meet personal preferences in residential and commercial spaces.

Panoramic Round Glass Elevator

A striking centerpiece that combines architecture and mobility, this circular glass elevator enhances natural light and offers uninterrupted city views. Ideal for luxury villas and penthouses, it harmonizes perfectly with grand spiral staircases to elevate both form and function.

Seamless Integration with Elegant Home Interiors

Designed to blend into modern home décor, this elevator features a clean-lined structure and premium finishes. It fits effortlessly between rooms without disrupting design flow, making it a smart, stylish solution for residential mobility needs.

Unique features make our products unique

We have a lot of accessories for your reference and customization

The traction-series of residential elevators for villa offers users various door opening options to choose, and it can also be specially designed based on the user’s requirements and usage situations.

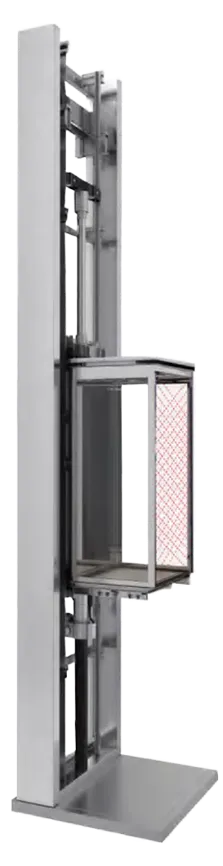

Hydraulic

ARD (Automatic Rescuer Device)

When the external power supply of the elevator is abnormal, it is capable of automatically detecting and activating the backup power supply, gradually moving the elevator car to the nearest floor and then opening the elevator door to safely release the passengers.

ARD

Automatic lighting systems

Home Home serles villa elevators is equlpped with auto- matic lighting function,when not in usethe liahting automaticaly turns off the car,received any call instruction automatically open,fully reduce power consumption in order to effectively reduce your living cost.

220V energy-saving new appliance

220V conventional voltage,1.1 KW ultralow energy consumption,exclusive to your satety,energy-saving’new appliance”

Full-computer intelligent control system

Multi-microcomputer,modularized and networked control system along with high-efficiency data processing drives elevator operation system more stable,accurate and reliable.

No need for complicated operation, complete your exclusive elevator design in 3 steps!

Go for customization

Can’t make up your mind? Take a look at what the vast majority of customers have chosen

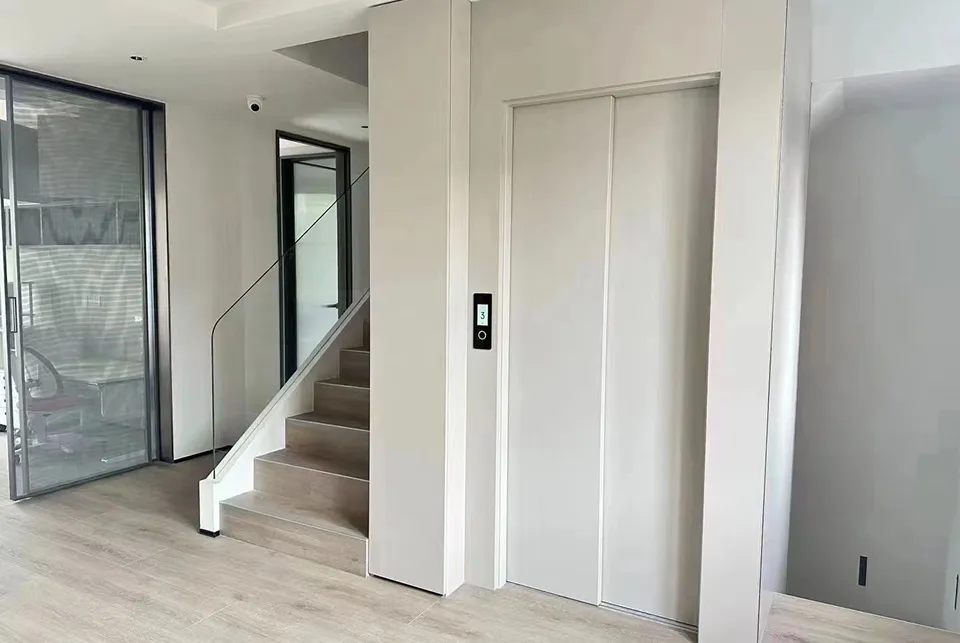

RESIDENTIAL ELEVATOR – Canada

Product: Compact hydraulic elevator with flush-fit landing door

Volume: 1 unit installed in a three-story private residence in Vancouver

Note: Designed to blend seamlessly with modern minimalist interiors, this elevator features a no-pit and no-machine-room configuration. The project required a silent and space-efficient lift solution, customized in neutral tones to match the client’s Scandinavian-inspired décor. Delivered with fast installation and reliable after-sales support.

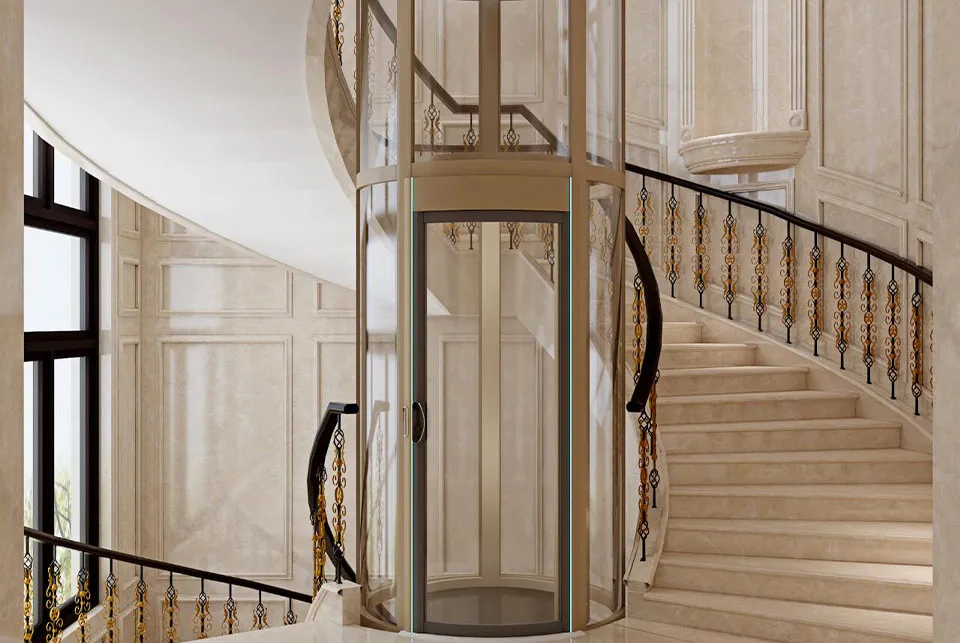

Luxury Villa Elevator – Saudi Arabia

Product: Panoramic Round Glass Home Elevator

Volume: 1 unit serving 3 floors in a luxury villa

Note:Installed in a high-end residence in Riyadh, this panoramic elevator features a pitless and machine-room-less design. Seamlessly integrated within a grand spiral staircase, it offers 360-degree transparency, smooth operation, and architectural elegance. The golden frame finish and silent hydraulic drive were selected to match the classical décor while ensuring superior ride comfort and space efficiency.
