Traction Gantry Frame Type Home Villa Elevator

Traction Gantry Frame Type Home Villa Elevator

Equipped with a permanent magnet synchronous gearless motor for superior performance, energy efficiency, and eco-friendliness.
Guide rails are symmetrically placed on both sides of the car for balanced load distribution, enhancing structural stability and prolonging elevator lifespan.
Offers both steel belt and steel wire rope options to accommodate diverse customer requirements.
Compact and space-saving layout, ideal for villa and residential installations without the need for an external machine room.
Features a one-piece control cabinet with clean design and streamlined installation.
Built-in ARD system ensures low-speed leveling and safe door opening in case of sudden power failure, improving passenger safety.

Product Introduction

The traction gantry frame type home villa elevator adopts the current advanced permanent magnet synchronous motor gear-less motor,superior performance,energy saving and envi- ronmental protection,the guide rail is distributed on both sides of the car,the structure is reasonable,and the force is uniform, which is conducive to extending the life of the elevator.Optional steel belt and steel wire rope,can meet the needs of different cus- tomers,No machine room with simple design,integrated control cabinet,built-in ARD power outage emergency leveling device,to achieve low speed flat door release in the event of sudden power failure.

Unique features make our products unique

Backpack Frame with Steel Belt Drive

Space-efficient structure combining stability and quiet performance, suitable for both hydraulic and traction systems.

Panoramic Sightseeing Shaft with Hidden Cable Layout

Sleek, modern design offering full visibility and a clean architectural aesthetic.

Luxury Interior with Smart Technology Integration

Includes luminous background panel, starry roof, touch LCD screen, and smart sliding door—merging visual elegance with intelligent control.

Unique features make our products unique

Go for customization

Unique features make our products unique

PDF Sample Download

Our products can be installed in the following five building structures

The building has a special elevator shaft Elevators can be installed directiy in dedicated wellways

Suitable space in the middle of the staircase Install elevators in the middie of the shaft

A hoilow half or room Instalation of elevators in has orrooms

The elevator with suitable space in the building can only be installed indoors. Installation of elevators by opaning appropriate holes in the floor and installing well paths

There is no suitable space in the building If permitted,install elevators with wells saliva in each room

Tips

On occasions②③④⑤ the installation of an elevator shaft specifically designed is required. Customers can utilize metal frames or concrete, etc. to build the shaft in advance. We recommend that customers opt for a special frame shaft for villa elevators.

Size

(1)Minimum Customized Size100*1100mm

(2)Minimum Top-level Height2600 mm

(3) Mininum Pit height 150mm

Equipment Maintenance and Care

– Add some lubricating oil between the corresponding moving parts to extend the service life of the bearings.

– Check monthly whether the hydraulic pipe joints and fasteners are loose, and tighten them in a timely manner if looseness is found.

– For long – term disuse (more than 1 month), conduct inspections and no – load tests before use.

– Clean the suction filter of the oil pump and the filter of the solenoid valve every six months.

– When replacing or repairing hydraulic components, clean the surroundings of the equipment, clean and blow dry the components, and temporarily block the oil inlet and outlet ports. Avoid bumping and damaging the components during the disassembly and assembly process, and strictly prevent dust, solid particles and water from entering the hydraulic oil circuit system.

– Check the quality and level of the hydraulic oil. When the car is lifted, the hydraulic oil level should be 40 – 50 mm higher than the fuel tank (When installed outdoors, use 46# hydraulic oil in summer and 32# hydraulic oil in winter).

– Regularly check the circuit and replace the aging or damaged wires in a timely manner.

– Check the landing door interlock device monthly to ensure that the landing door cannot be opened when the elevator car is not at the floor.

The material of the Traction Gantry Frame Type Home Villa Elevator

Steel Structural Cross-Section

The Characteristics of Steel Structure Shaft Frame

It offers high cost-effectiveness. The Exterior anel will be subsequently sealed and integrated with the design style by the decoration unit. The installation position can be treely chosen, and the surface is sprayed with rust-resistant treatment, being resistant to corrosion.

High-Level Spray-Painted Steel Frame Construction

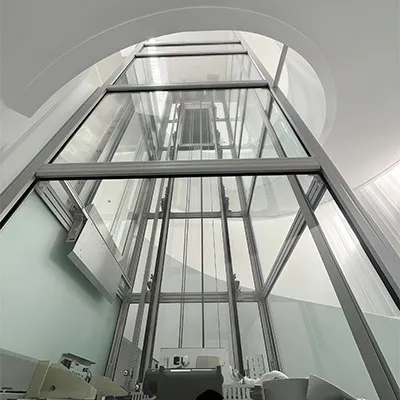

Aluminum alloy cross section

The Characteristics of Aluminum Alloy Cross-Section

An independent frameless glass design does not add to the building cost. It features excellent light transmittance and seamless integration with indoor decoration. The installation location can be freely chosen. It is corrosion-resistant and has a long service life. Industrial grade aluminum alloy is chosen, and the glass is made

Hight-Level Spary-Painted Aluminum Alloy Frame Construction

Protective Device Eliminate Hidden Safety Hazards

Single-touch dialing

Theelevatorisfurmishedwithasingletouchdialingfunction,whichtriggerstheintelligentsingle-touch dialingmoduleasperyoursettings,enablingittodialthenumberssuccessivelyinaccordancewithyour configuration.

ARD (Automatic Rescuer Device)

When the external power supply of the elevator is abnormal,it is capable of automatically detecting and activating the backup power supply,gradually moving the elevator car to the nearest floor and then opening the elevator door to safely release the passengers.

Automatic Lighting System

HomeHome serles villa elevators is equlpped with auto- matic lighting function,when not in usethe liahting automat- icaly turns off the car,received any call instruction automati- cally open,fully reduce power consumption in order to effec- tively reduce your living cost.

Protective apparatus

Platform Villa Elevator

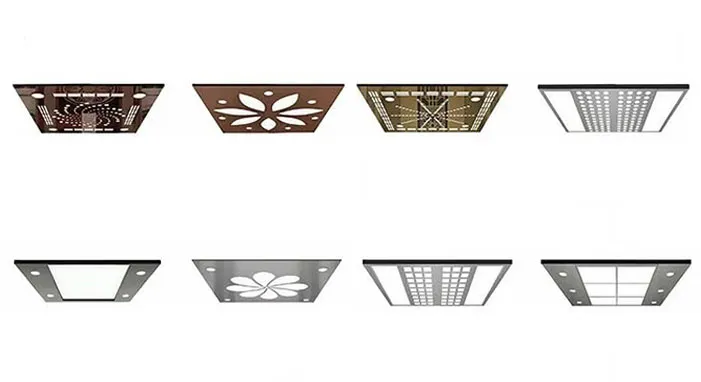

Ceiling Series

The Ceiling Series brings together ambient lighting and artistic design, using starry sky patterns, soft luminous panels, and immersive visual effects to transform each ride into a moment of elegance. It’s more than illumination—it’s a sensory experience that reflects modern aesthetics, enhances space perception, and elevates the overall sense of luxury in every home elevator.

Floor Series

Inspired by oriental aesthetics and contemporary design, the Floor Series showcases an elegant blend of marble geometry and poetic landscape art. From classic circular medallions to flowing ink-style mountains, each floor panel is not only a surface to stand on, but a canvas of timeless beauty. Durable, slip-resistant, and visually captivating, these designs ground every elevator ride in calm, culture, and quiet sophistication.

Start Our First Collaboration - Your Custom Home Elevator Solution, Delivered in 3 Business Days

Why Choose Us?

With 10,000+ satisfied customers worldwide and 10+ international certifications, we guarantee top-tier quality and reliability for every project. Our commitment includes:

✓ 10+ Industry Certifications (CE, ASME, ISO, etc.) – Ensuring compliance and safety

✓ 10,000+ Successful Installations – Trusted by homeowners & developers globally

✓ End-to-End Support – From design to installation, backed by a dedicated project team

✓ Tailored Solutions – Customizable for luxury villas, aging-in-place homes & smart residences

Get a quote
