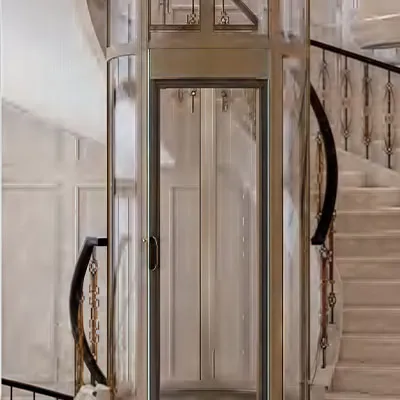

Round Home Sightseeing Elevator

Utilizes the most widely used transmission method in the elevator industry, offering excellent stability and reliability.
Features a modular cavity structure with seamless connections, enhancing structural integrity and visual aesthetics.
Equipped with high-strength T78 guide rails to ensure smooth operation and improve overall safety performance.

Product Introduction

The driving structure of elevator is traction drive,which is the most common transmission mode in elevator industry,and has good stabdty,The shaft frame adoptsthe cavity type design,and the seamless connection between the cavity structures,together with theassistance of T78 steel guide rail,creates a perfect appearance and ensures the safe operation of the elevator.

Unique features make our products unique

Spacious Design for Enhanced Comfort and Accessibility

Wide cabin and door opening dimensions ensure comfortable access and optimized usability.

Architectural Harmony with Circular Shaft Design

Circular shaft structure maximizes spatial aesthetics and architectural integration

Precision Engineering for Stable Performance

Precision structural layout enhances installation accuracy and operational stability.

Unique features make our products unique

Go for customization

Unique features make our products unique

PDF Sample Download

Our products can be installed in the following five building structures

The building has a special elevator well The elevator can be installed directly with in it

Suitable space in the midde of the staircase Install elevators in the middie of the shaft

A hoilow half or room Instalation of elevators in halls orrooms

The elevator with suitable space in the building can only be installed indoors. Installation of elevators by opaning appropriate holes in the floor and installing well paths

There is no suitable space in the building If permitted,install elevators with wells saliva in each room

Tips

On occasions②③④⑤ the installation of an elevator shaft specifically designed is required. Customers can utilize metal frames or concrete, etc. to build the shaft in advance. We recommend that customers opt for a special frame shaft for villa elevators.

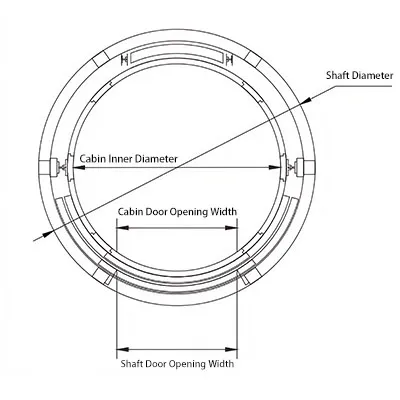

Size

(1)Minimum Customized Size100*1100mm

(2)Minimum Top-level Height2600 mm

(3) Mininum Pit height 150mm

Equipment Maintenance and Care

– Add some lubricating oil between the corresponding moving parts to extend the service life of the bearings.

– Check monthly whether the hydraulic pipe joints and fasteners are loose, and tighten them in a timely manner if looseness is found.

– For long – term disuse (more than 1 month), conduct inspections and no – load tests before use.

– Clean the suction filter of the oil pump and the filter of the solenoid valve every six months.

– When replacing or repairing hydraulic components, clean the surroundings of the equipment, clean and blow dry the components, and temporarily block the oil inlet and outlet ports. Avoid bumping and damaging the components during the disassembly and assembly process, and strictly prevent dust, solid particles and water from entering the hydraulic oil circuit system.

– Check the quality and level of the hydraulic oil. When the car is lifted, the hydraulic oil level should be 40 – 50 mm higher than the fuel tank (When installed outdoors, use 46# hydraulic oil in summer and 32# hydraulic oil in winter).

– Regularly check the circuit and replace the aging or damaged wires in a timely manner.

– Check the landing door interlock device monthly to ensure that the landing door cannot be opened when the elevator car is not at the floor.

The material of the Round Home Sightseeing Elevator

Steel Structural Cross-Section

The Characteristics of Steel Structure Shaft Frame

It offers high cost-effectiveness. The Exterior anel will be subsequently sealed and integrated with the design style by the decoration unit. The installation position can be treely chosen, and the surface is sprayed with rust-resistant treatment, being resistant to corrosion.

High-Level Spray-Painted Steel Frame Construction

Color

Aluminum alloy cross section

The Characteristics of Aluminum Alloy Cross-Section

An independent frameless glass design does not add to the building cost. It features excellent light transmittance and seamless integration with indoor decoration. The installation location can be freely chosen. It is corrosion-resistant and has a long service life. Industrial grade aluminum alloy is chosen, and the glass is made

Hight-Level Spary-Painted Aluminum Alloy Frame Construction

Color

Protective Device Eliminate Hidden Safety Hazards

Single-touch dialing

Theelevatorisfurmishedwithasingletouchdialingfunction,whichtriggerstheintelligentsingle-touch dialingmoduleasperyoursettings,enablingittodialthenumberssuccessivelyinaccordancewithyour configuration.

ARD (Automatic Rescuer Device)

When the external power supply of the elevator is abnormal,it is capable of automatically detecting and activating the backup power supply,gradually moving the elevator car to the nearest floor and then opening the elevator door to safely release the passengers.

Protective apparatus

ARD (Automatic Rescuer Device)

Multiple security mechanisms provide strong backing

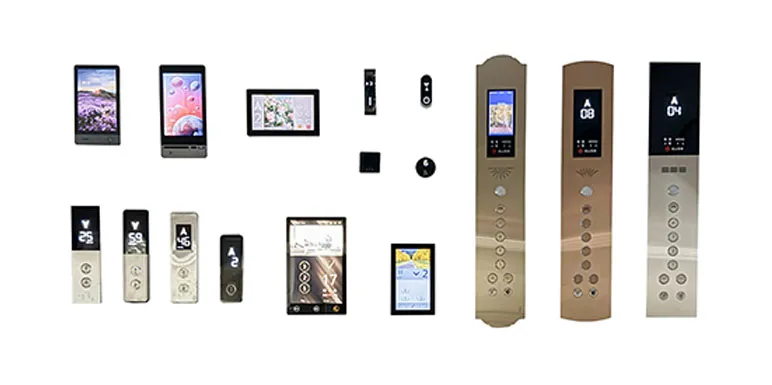

Push button call box

The Hydraulic elevator-series of residential elevators for villa offers users various door opening options to choose, and it can also be specially designed based on the user’s requirements and usage situations.

Floor Series

Inspired by oriental aesthetics and contemporary design, the Floor Series showcases an elegant blend of marble geometry and poetic landscape art. From classic circular medallions to flowing ink-style mountains, each floor panel is not only a surface to stand on, but a canvas of timeless beauty. Durable, slip-resistant, and visually captivating, these designs ground every elevator ride in calm, culture, and quiet sophistication.

Start Our First Collaboration - Your Custom Home Elevator Solution, Delivered in 3 Business Days

Why Choose Us?

With 10,000+ satisfied customers worldwide and 10+ international certifications, we guarantee top-tier quality and reliability for every project. Our commitment includes:

✓ 10+ Industry Certifications (CE, ASME, ISO, etc.) – Ensuring compliance and safety

✓ 10,000+ Successful Installations – Trusted by homeowners & developers globally

✓ End-to-End Support – From design to installation, backed by a dedicated project team

✓ Tailored Solutions – Customizable for luxury villas, aging-in-place homes & smart residences
