Hydraulic Home Villa Elevator

Strong adaptability,there is no well can be,no machine room,the top layer is
higher than 2 meters can be installed
Low civil construction requirements,can do 0 bottom pit or shallow pit plan,no
need to do high strength well in advance,reduce the owner’s construction diffi-
culty and cost
High space utilization,no counterweight device,so that the utilization rate can
be increased to 70%:
Flexible layout,strong compatibility,indoor,outdoor,middle of the stairs,
corner,balcony,floor opening,hanging,special well can be installed.

Product Introduction

Hydraulic home villaelevator through the”pressure rise,gravity drop”principle,the use of advanced cylinder,specialpumpstation,controlsystem,withimported high-precision proportional valve,toachieve step-less speed regulation,equipped with afirst-linebrand of safety light curtain,speed governor,safety gear to ensure that never falldown theladder,so that the elevatorsafeandsmoothoperation.

Unique features make our products unique

Space-Saving Design Without Overhead Machine Room

Eliminates the necessity for a high-specification and costly machine room above the shaft,allowing it to be level with the roofline.

Maximized Shaft Space Utilization Without Counterweights

Increases shaft space utilization:Hydraulic elevators do not require a counterweight system,thereby increasing the effective use of shaft space.

Versatile Installation, Anywhere You Need

Flexible layout,strong compatibility,indoor,outdoor,middle of the stairs, corner,balcony,floor opening,hanging,special well can be installed.

Unique features make our products unique

Go for customization

Unique features make our products unique

PDF Sample Download

Our products can be installed in the following five building structures

The building has a special elevator well the elevator can be installed directly with in it

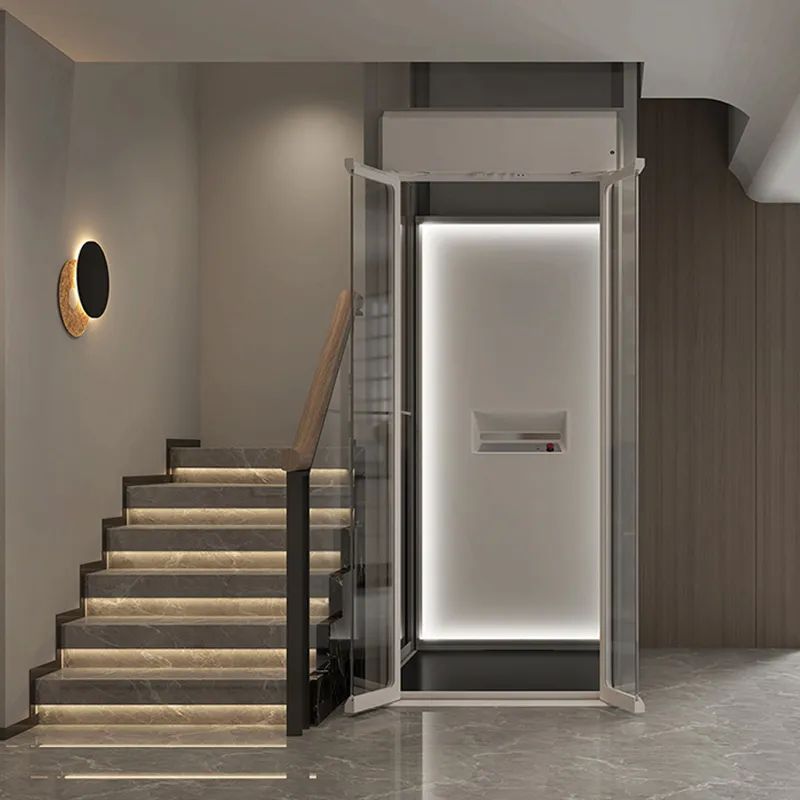

A suitable space exists around the central staircase An elevator should be installed in the shaft located in the middle

A hollow hall or room. An elevator can be installed in a hallway or room through the construction of a shaft.

the building, and thus the Suitable space exists within elevator can merely be installed indoors. Suitable holes should be drilled in the floor and an elevator and shaftway are to be installed.

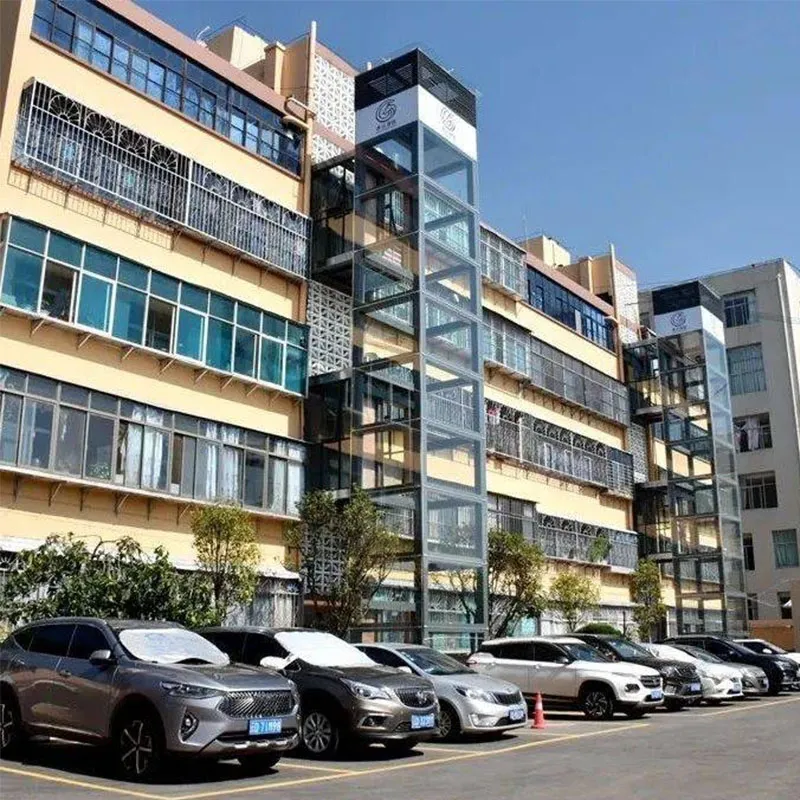

Suitable space is lacking inside the building If possible, an additional shaft can be installed within the building and an elevator can be fitted

Tips

On occasions②③④⑤ the installation of an elevator shaft specifically designed is required. Customers can utilize metal frames or concrete, etc. to build the shaft in advance. We recommend that customers opt for a special frame shaft for villa elevators.

Size

(1)Minimum Customized Size100*1100mm

(2)Minimum Top-level Height2600 mm

(3) Mininum Pit height 150mm

Maintenance of Hydraulic Home Elevators

– When the working hours exceed 1,000 hours or every full year, clean the fuel tank and replace the hydraulic oil. If the usage frequency is low, replace the hydraulic oil at most every two years. When the equipment has been in use for two years, it should be comprehensively inspected and maintained by professionals.

– Check all hydraulic pipelines and joints. The pipelines should not be damaged, the joints should not be loose, and all joints must be tightened.

– Remove and disassemble the lowering valve, blow the plunger clean with compressed air, and then reinstall it.

– Drain and discard all the hydraulic oil, tighten the joints, remove the filter, clean and blow it dry, then clean it thoroughly with compressed air, put it back into the fuel tank, connect the pipelines properly, and replace with new oil.

The material of the hydraulic domestic elevator

Steel Structural Cross-Section

The Characteristics of Steel Structure Shaft Frame

It offers high cost-effectiveness. The Exterior anel will be subsequently sealed and integrated with the design style by the decoration unit. The installation position can be treely chosen, and the surface is sprayed with rust-resistant treatment, being resistant to corrosion.

High-Level Spray-Painted Steel Frame Construction

Aluminum alloy cross section

The Characteristics of Aluminum Alloy Cross-Section

An independent frameless glass design does not add to the building cost. It features excellent light transmittance and seamless integration with indoor decoration. The installation location can be freely chosen. It is corrosion-resistant and has a long service life. Industrial grade aluminum alloy is chosen, and the glass is made

Hight-Level Spary-Painted Aluminum Alloy Frame Construction

Protective Device Eliminate Hidden Safety Hazards

Single-touch dialing

Theelevatorisfurmishedwithasingletouchdialingfunction,whichtriggerstheintelligentsingle-touch dialingmoduleasperyoursettings,enablingittodialthenumberssuccessivelyinaccordancewithyour configuration.

ARD (Automatic Rescuer Device)

When the external power supply of the elevator is abnormal,it is capable of automatically detecting and activating the backup power supply,gradually moving the elevator car to the nearest floor and then opening the elevator door to safely release the passengers.

Protective apparatus

ARD (Automatic Rescuer Device)

Multiple security mechanisms provide strong backing

Push button call box

The Hydraulic elevator-series of residential elevators for villa offers users various door opening options to choose, and it can also be specially designed based on the user’s requirements and usage situations.

Hall door style

Start Our First Collaboration - Your Custom Home Elevator Solution, Delivered in 3 Business Days

Why Choose Us?

With 10,000+ satisfied customers worldwide and 10+ international certifications, we guarantee top-tier quality and reliability for every project. Our commitment includes:

✓ 10+ Industry Certifications (CE, ASME, ISO, etc.) – Ensuring compliance and safety

✓ 10,000+ Successful Installations – Trusted by homeowners & developers globally

✓ End-to-End Support – From design to installation, backed by a dedicated project team

✓ Tailored Solutions – Customizable for luxury villas, aging-in-place homes & smart residences
